Product Description
Transmits an HDMI signal in UHD 4K via the USB-C interfaceSupports 4K / 30 Hz
Latency: Zero frame delay
Data transfer rate: 5 Gbps
Length: 1.8 m
Supports USB 3.1 Gen 1
Power supply via a USB-C connection – no need for a charger
Elegant aluminum housing
Plug and Play – no driver installation required
Technical Specification
- HDTV Standard: Ultra HD 4K

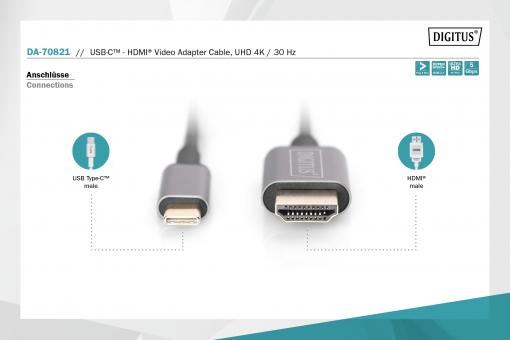

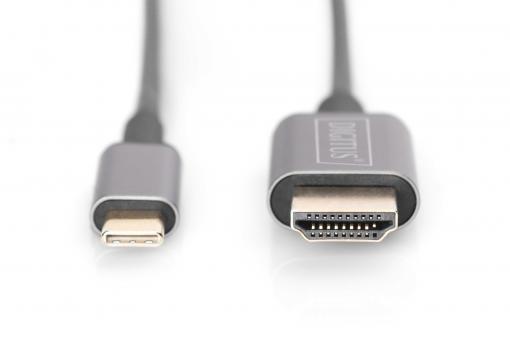

- Connector 1: USB C, plug
- Connector 2: HDMI type A, plug
- USB-C Products: true
- Supported resolutions: 4K /30 Hz (3840 x 2160p), 1080p@120Hz, 720p, 480p
- Data transfer rate: 5 Gbps
- Chipset: Realtek-RTD2171U
- USB 3.1 Gen 1
- Supports 4K 3D, Full HD 3D HFR
- Supports ARC
- Supports YUV 4:4:4
- Supports HDCP 2.0
- Supports HDMI 1.4b
- Supported color depth: 12 bit
- Supports Consumer Electronic Control (CEC)
- Supports Lip Sync (audio/video synchronization)
- Supports Multi-Stream audio/video
- Supports 21:9 Cinemascope
- Supports 32 channel audio
- Supports 8-channel LPCM, 192 kHz, 24-bit audio capability
- Supports DTS-HD Master Audio bitstream
- Supports Super Audio CD (DSD)
- Supports DVD audio
- Supports Blu-ray Disc and HD DVD audio and video
- Supports EDID 2.0 (device recognition)
- Supports DVI Version 1.0
- Latency: Zero frame delay
- Power consumption: 250 mW max.
- Compatible operating systems: Windows 10/8/8.1/7, MacOS (OS X), Android, Chromebook Pixel
- Operating humidity: 20% – 80% RH
- Operating temperature: -10?C ~ +50?C
- Length: 1.8 m
- Cable sheath: PVC
- Connector housing: Aluminum
- Dimensions: L 46 x W 37.6 x H 13.2 mm
- Weight: 62 g
- Manufacturer?s notice:
- Your device equipped with USB-C must support the DisplayPort video mode (DP Alt Mode) in order to be compatible with this adapter/converter.
- The video output capabilities depend on your notebook?s graphic card and the connected monitor. Some screens also limit the available resolution.
