Product Description
Be more productive on your PC, Mac® or tablet with this extremely versatile docking station from Manhattan. It enables multitasking on two UHD HDMI monitors at the same time. Five SuperSpeed USB-A ports and one USB-C port transfer data at lightning speed at up to 10 Gbit/s. The 10/100/1000 LAN port with auto-sensing provides the wired Internet connection that many laptops lack. This variety of connections is rounded off by a Power Delivery input (PD) with a power consumption of up to 100 W, which supplies all connected USB devices (and of course the notebook) with power.
HDMI display connection with gigantic, future-proof 8K

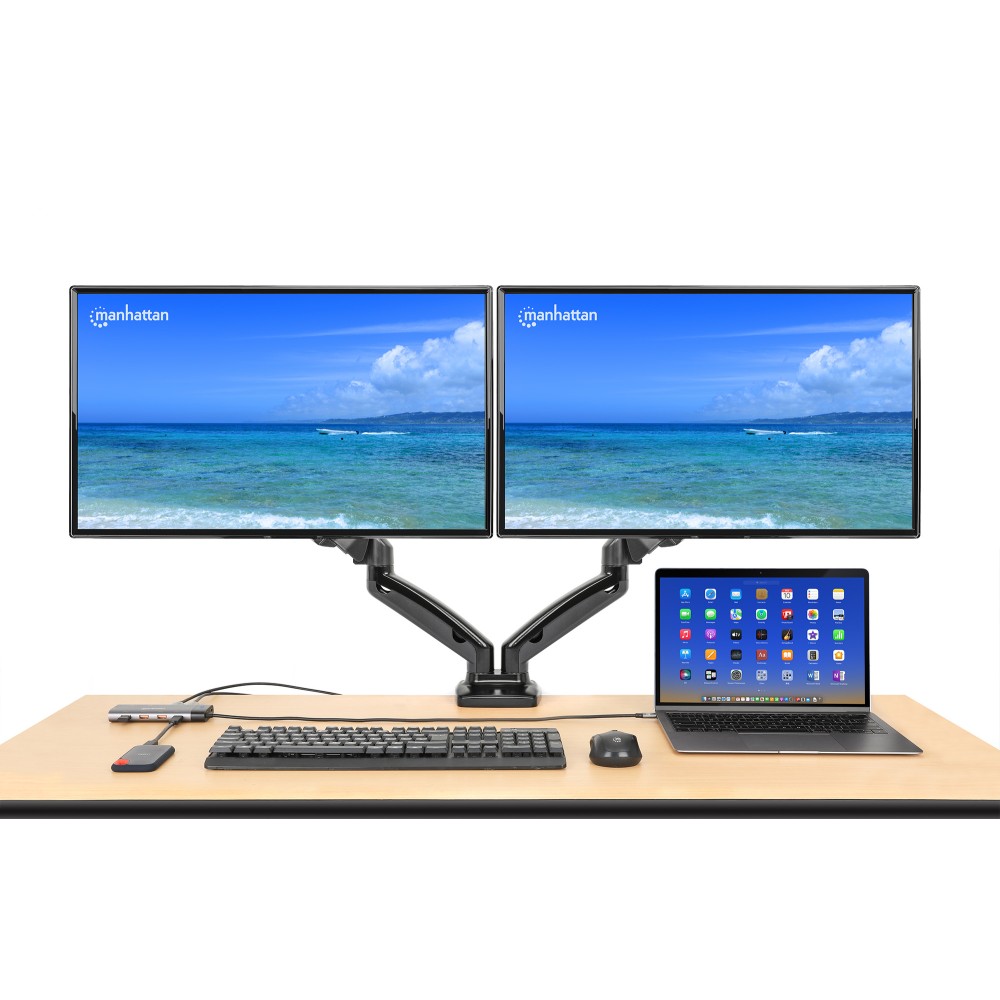

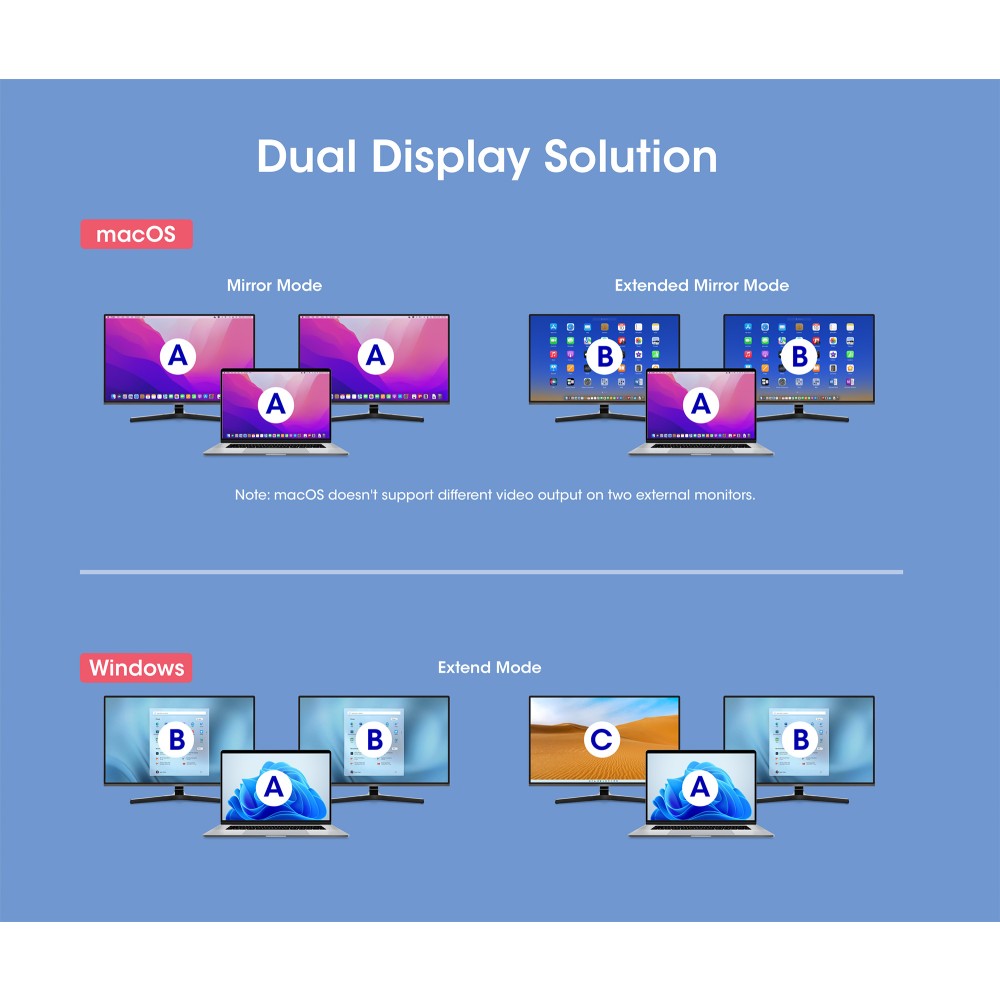

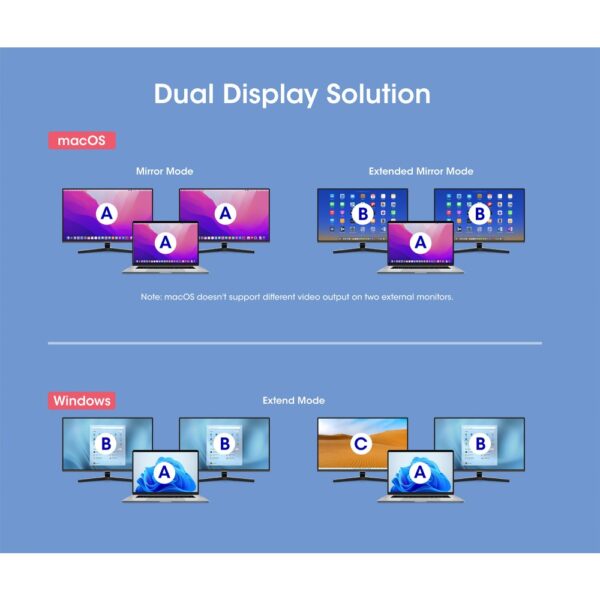

The two HDMI ports allow multitasking on multiple HDMI monitors at the same time. Extend your laptop display to one HDMI monitor with 8K@30Hz resolution or two monitors with 4K@60Hz. On Windows®, it supports Duplicated and Fully Extended modes, meaning you can display different images and videos on your laptop and two other monitors. On Mac, it supports Duplicated or Extended Duplicated, meaning you can display one image/video on your laptop and the same images on two other monitors.
connection for LAN and peripherals
There is space for all your peripherals in the six USB ports for mice, keyboards and USB sticks. Of the five USB-A ports, two offer transfer rates of up to 10 Gbit/s, three up to 5 Gbit/s and all five have a charging capacity of up to 2.5 W. A USB-C data port transfers data at up to 10 Gbit/s. The Gigabit RJ45 port provides the wired Ethernet connection that you will look for in vain in the slim housings of modern Ultrabooks™ and MacBooks.
100 W input power with USB-C Power Delivery (PD)
At 100W input, the USB-C PD port delivers up to 85W to charge your laptop via the USB-C connector. It also charges devices connected to the USB-A ports, such as smartphones and tablets. The Power Delivery function charges faster than standard chargers because it determines the power requirements of compatible devices and delivers at the fastest and safest rate.
Bring your phone to the big screen
Connect an Android smartphone with USB-C DP Alt Mode support to experience photos and apps on the big screen. Watch a video on your monitor or scroll through the slides of your presentation on a projector – all directly from your phone.
A multiport adapter for on the go

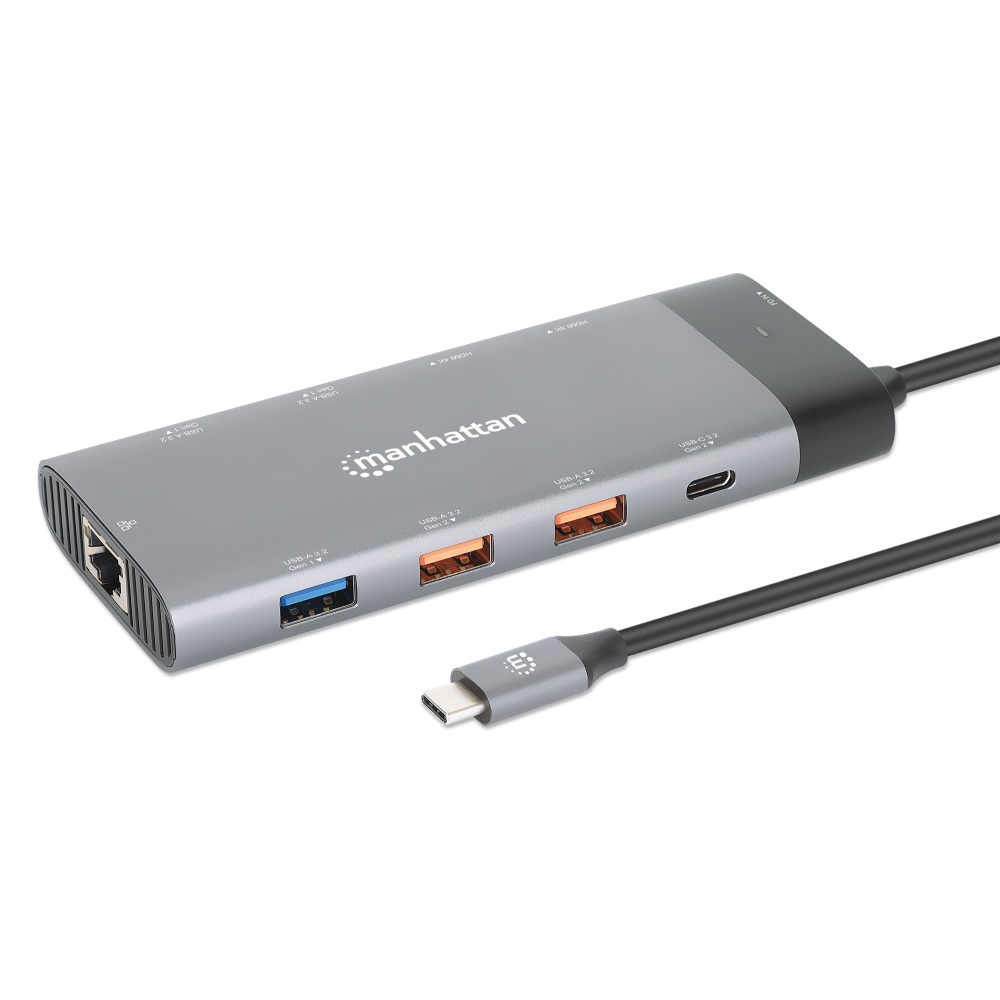

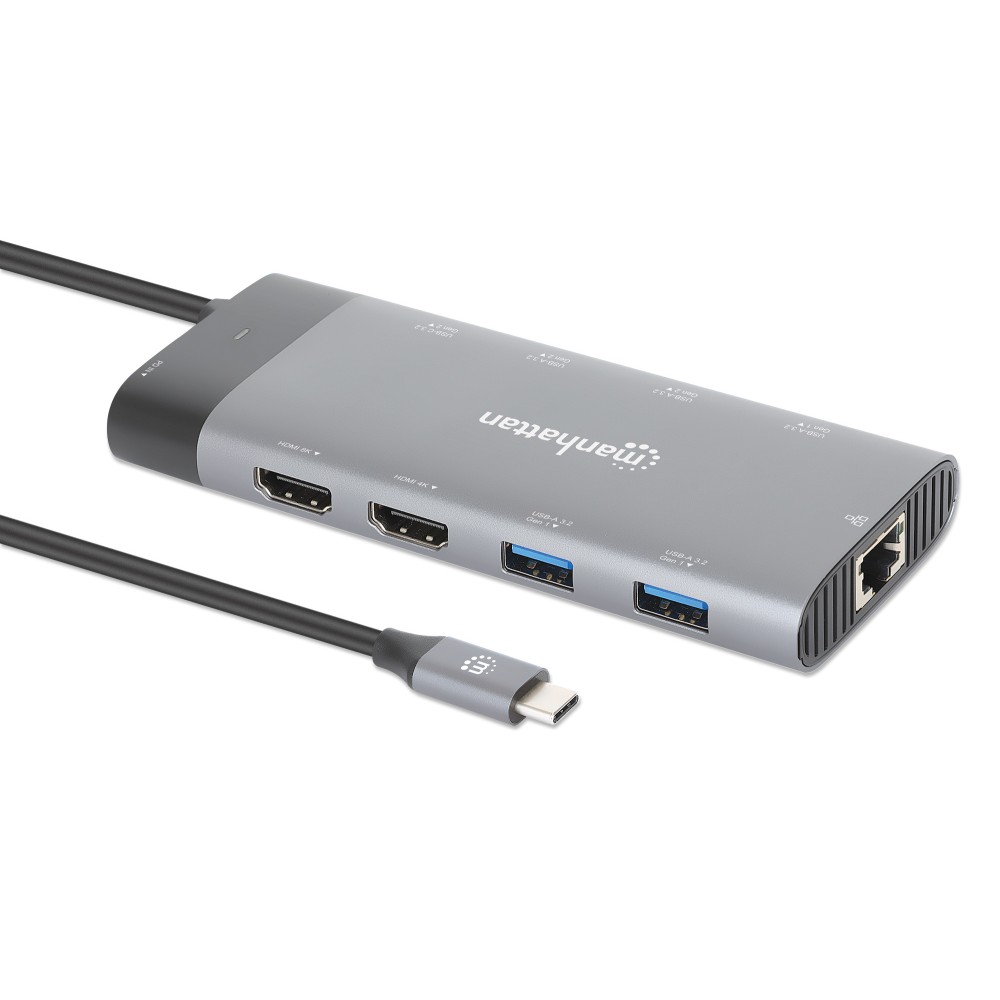

The robust aluminum housing makes this multiport adapter the perfect travel companion. Despite its extensive connection options, it is still compact enough to fit in the outside compartment of your laptop bag.

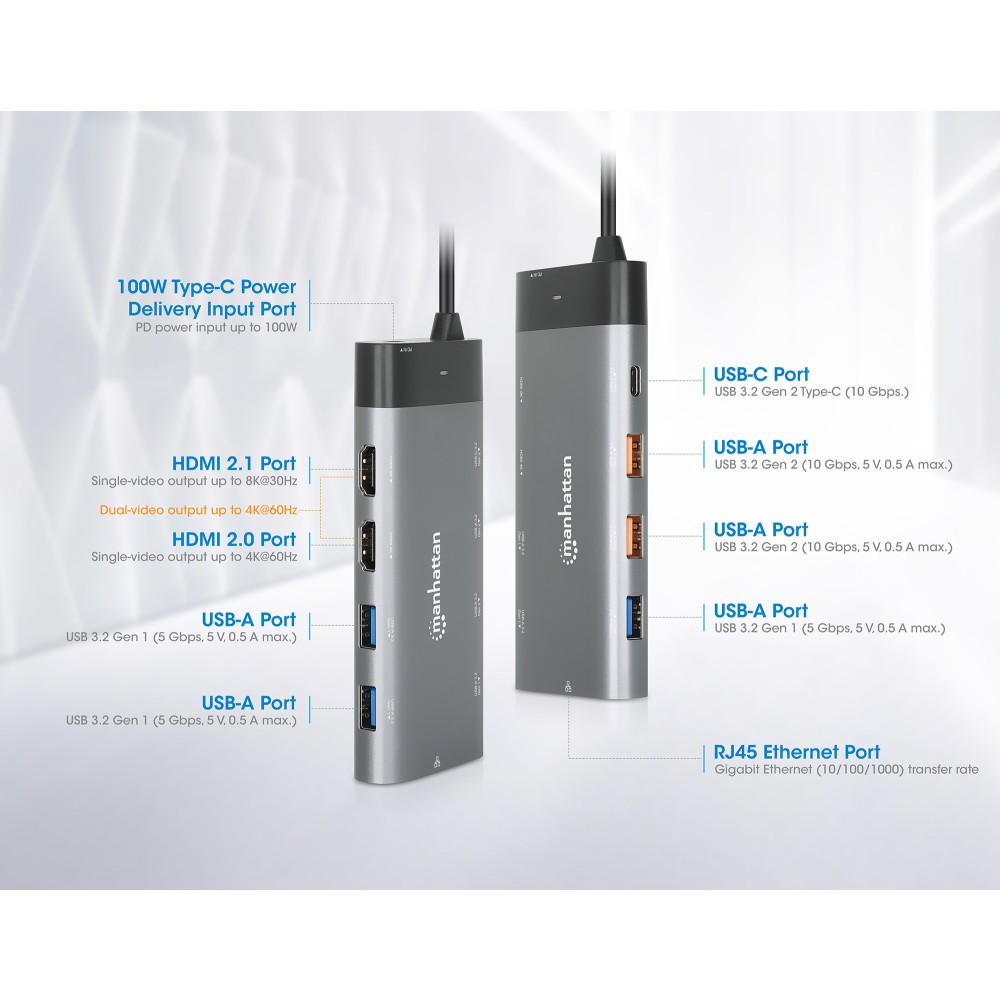

- Connects your laptop to multiple displays, network and peripherals and charges your devices
- Two HDMI ports with resolutions up to 8K@30Hz for image output on one monitor or 4K@60Hz on two monitors
- Uses Multi-Steam Transport (MST) for Fully Extended display modes on Windows® (different images on laptop, monitor 1 and 2) and Duplicated or Extended Duplicated on Mac® (different image on laptop, same image on monitor 1 and 2)
- One Gigabit Ethernet port (10/100/1000) for downloads, media streaming and gaming in high speed
- Charges your laptop with USB Power Delivery (PD) up to 85W; requires external PD charger – available from Manhattan
- A USB 3.2 Gen 2 Type-C port only for data with transfer rates up to 10 Gbit/s
- Two USB 3.2 Gen 2 Type A ports with SuperSpeed transfer rates up to 10 Gbit/s and device charging up to 2.5 W (5 V / 0.5 A)
- Three USB 3.2 Gen 1 Type A ports (USB 3.0) with SuperSpeed transfer rates up to 5 Gbit/s and device charging up to 2.5 W (5 V / 0.5 A)
- USB-A ports for connecting mice, keyboards, USB sticks and more, as well as for charging and synchronizing mobile devices
- Compatible with all USB-C DP Alt Mode supported PCs, notebooks and tablets, including Apple MacBook®, Chromebook™, Pixel™ and more
- Compliant with DisplayPort 1.4 Alternate Mode (DP Alt Mode)
- Allows you to use your smartphone as a desktop PC while charging its battery (desktop display requires devices running Android 9 or higher with video output via USB-C)
- Robust, slim aluminum housing, suitable for desk and on the go
- Plug & Play installation; compatible with Windows®, macOS®, Chrome OS™ and Android™
- Extra-long, integrated 60 cm cable with molded aluminum grommet for comfortable use on any laptop port
- Compatible with USB4® and Thunderbolt™ 3 / 4 interfaces
- Fully HDCP 2.3 compliant, backwards compatible
- 3-year warranty
standards and certificates
- DP 1.4 Alt Mode via USB-C
- USB 3.2 Gen 2
- USB 3.2 Gen 1
- HDMI 2.1
- HDCP 2.3
- CE
- FCC
- RoHS
- REACH
- UKCAGeneral
- Max. video resolutions:
– When using one video port, the max. resolution is 8K (7680 x 4320) at 30 Hz
– When using two video ports simultaneously, the max. resolution per display is 4K (3840 x 2160) at 60 Hz - USB-A ports 1 – 3 data transfer: 5 Gbit/s; charging power: 2.5 W (5 V / 0.5 A) max.
- USB-A ports 4 – 5 Data transfer: 10 Gbit/s; Charging power: 2.5 W (5 V / 0.5 A) max.
- USB-C port data transfer: 10 Gbit/s
- Power supply via USB (except charging functions)
- USB-C PD charging port: 100.0 W input / 85.0 W output max.
– Settings Voltage/Current (max.):
– 5.0 V / 5.0 A
– 9.0 V / 5.0 A
– 12.0 V / 5.0 A
– 15.0 V / 5.0 A
– 19.0 V / 5.0 A
– 20.0 V / 5.0 AConnections - 1 x 24-pin USB-C connector
- 2 x 19-pin HDMI socket
- 1 x RJ45 socket 10/100/1000 Mbit/s
- 4 x USB-A 9-pin socket
- 1 x 24-pin USB-C Power Delivery socket
- 1 x 24-pin USB-C data portPhysical Details
- aluminum housing
- Dimensions (L x W x H): 130 x 54 x 17 mm
- Net weight: 140 g
- Gross weight: 180 g
- Cable length: 60 cm
- Cable diameter: AWG 34Environmental conditions
- Ambient temperature during operation: 0 – 70°C
- Ambient temperature during storage: -10 – 80°C
- Humidity (non-condensing): 5 – 90% RHSystem requirements
- Windows 7/8.1/10/11, Chrome OS, macOS orAndroid
