Product Description
• Supports 1080p resolution, 3D video and Deep Color
• Compatible with any HDMI device, such as Blu-ray, game consoles, stereos and PCs
• Compliant with High Speed HDMI specifications
• Up to 10.2 Gbps at 340 MHz bandwidth
• Double shielded to reduce EMI and other interference sources
• Molded PVC boot
• Lifetime Warranty
Standards and Certifications
• UL 20276
• ISO 9002
General
• Bandwidth: 10.2 Gbps
• 340 MHz
• Meets or exceeds existing HDMI standards
• Length: 1.8 m (6 ft.)
Contacts

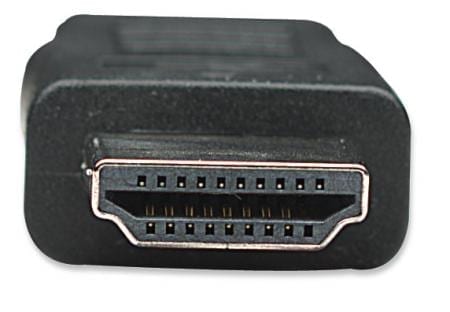

• HDMI 19-pin male

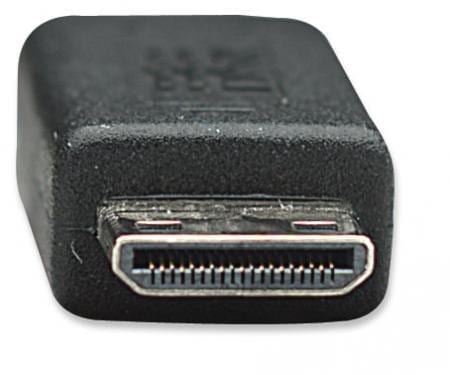

• Mini HDMI 19-pin male
• Nickel plated
• Molded PVC boot
• Double shielded
• 30 AWG cable
Electrical
• Current rating: 0.5 A DC
• Withstanding voltage: 300 VDC
• Insulation resistance: 5 MΩ
• Conductive resistance: 2 Ω
Package Contents

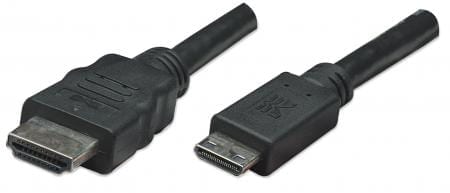

• High Speed Mini HDMI Male to HDMI Male Cable
