Product Description
Standards
• USB Specification version 3.1 Gen 1 (5 Gbps)
• USB Specification version 3.0
• USB Specification version 2.0
• USB Specification version 1.1
• USB Specification version 1.0
• IEEE 802.1p (Traffic Prioritization)
• IEEE 802.1q (VLAN Tagging)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3u (100Base-TX Fast Ethernet)
General
• USB Type-C connector
• RJ45 connector
• Cable length: 13 cm (5.1 in.)
• Certifications: FCC Class B, CE, RoHS
Power
• USB bus powered
• Operating mode: 420 mA
• Suspend mode : 38 mA
Environmental
• Dimensions: 68 (L) x 22 (W) x 16 (H) [mm] / 2.68 (L) x 0.87 (W) x 0.63 (H) [in]
• Weight: 145 g (5.11 oz.)
• Operating temperature: 0 – 70°C (32 – 158°F)
• Storage temperature: -10 – 80°C (14 – 176°F)
• Storage humidity: 5 – 90%, non-condensing
System Requirements
• Available USB-C™ or Thunderbolt™ 3 port
• Supported Operating Systems:
– Windows XP, Windows Vista, Windows 7, Windows 8/8.1 and Windows 10
– Apple Mac OS 10.6 – 10.12
– Google Chrome OS
– No support for Windows RT
Package Contents

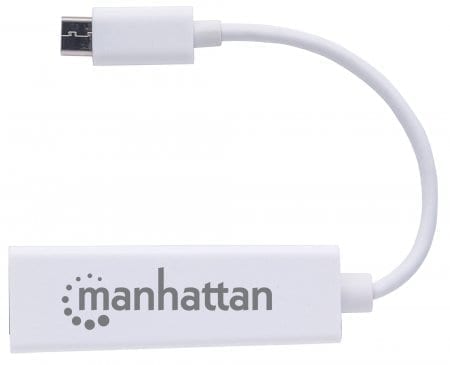

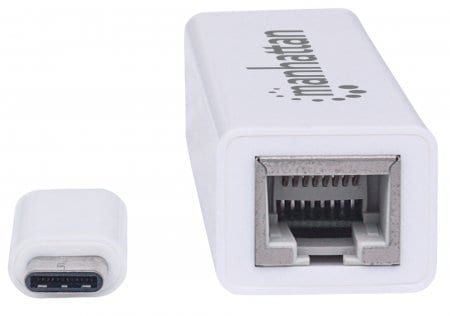

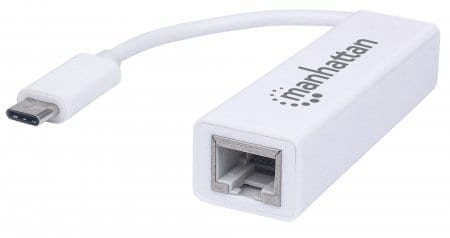

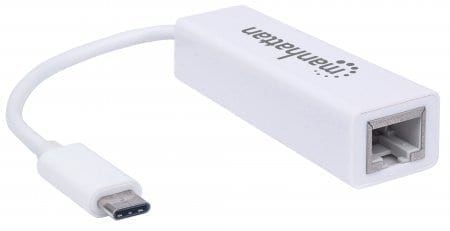

• Type-C to Gigabit Ethernet Network Adapter
• Setup CD
• Instructions
