Product Description
Specifications:
Standards and Certifications
• UL 2725
• USB 3.0
Connectors
• USB 3.0 Type-A male
• USB 3.0 Micro-B male
• Gold-plated contacts
• Molded PVC boot with strain relief
Cable
• Shielded
• Current rating: 1 ADC
• Withstanding voltage: 300 VDC 10 ms
• Insulation resistance: 5 MΩ
• Conductive resistance: 10 Ω
• Thermal plastic casing
• 28 AWG
Physical
• Length: 0.5 m (1.5 ft.)
• Weight: 27 g (1 oz.)
Operating Environment
• Operation Temperature: 0 – 50°C (32 – 122°F)
• Storage Temperature: -25 – 85°C (-13 – 185°F)
• Humidity (noncondensing): 0 – 96%
Package Contents

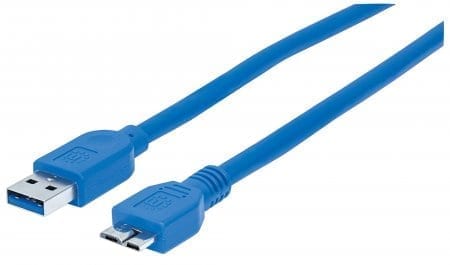

• SuperSpeed USB Device Cable
